RobotFlow::Exploitation Class Reference

#include <Exploitation.h>

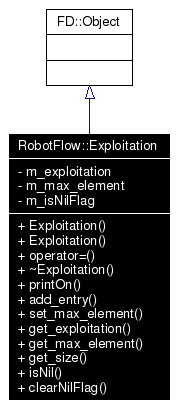

Inheritance diagram for RobotFlow::Exploitation:

[legend]Collaboration diagram for RobotFlow::Exploitation:

[legend]

---

Detailed Description

Higher intelligence modules need to know which node have produced an output at a certain iteration count. The Exploitation class is responsible of "remembering" which output of a node have been used over a certain period of time.

Author:

Dominic Létourneau

Version:

Revision

1.6

Date

2005/03/29 15:20:19

History:

Revision

1.6

• 12/05/2003 Added doxygen documentation.
• 12/05/2003 Created new file ExploitationEntry.h, class extracted from Exploitation.h

Public Member Functions
	Exploitation (int max_element=100)
	Exploitation (const Exploitation &cpy)
Exploitation &	operator= (const Exploitation &eq)
virtual	~Exploitation ()
virtual void	printOn (std::ostream &out=std::cout) const
void	add_entry (int count, FD::Node *node, int output_id)
void	set_max_element (int max_element)
std::list< ExploitationEntry > &	get_exploitation ()
int	get_max_element ()
int	get_size ()
virtual bool	isNil () const
void	clearNilFlag ()
void	ref ()
void	unref ()
int	unique ()
virtual void	destroy ()
virtual void	serialize (std::ostream &out) const
virtual void	unserialize (std::istream &in)
virtual void	doesNotUnderstand (std::string method)
virtual void	prettyPrint (std::ostream &out=std::cout) const
virtual void	readFrom (std::istream &in=std::cin)
virtual ObjectRef	clone ()
virtual std::string	className () const
Static Public Member Functions
static ObjectRef	newObject (const std::string &objType)
static int	addObjectType (const std::string &objType, _ObjectFactory *factory)
static std::map< std::string, _ObjectFactory * > &	ObjectFactoryDictionary ()
static TypeMap< _ObjectFactory * > &	TypeidDictionary ()
Protected Attributes
AtomicCounter	ref_count
Private Attributes
std::list< ExploitationEntry >	m_exploitation
	The list of ExploitationEntry (ies).
int	m_max_element
	maximum exploitation entries in the list
bool	m_isNilFlag
	the isNil flag
Friends
friend std::ostream &	operator<< (std::ostream &out, const Object &obj)

---

Constructor & Destructor Documentation

RobotFlow::Exploitation::Exploitation (  int  max_element = 100  )

Constructor with maximum ExploitationEntry in the exploitation registery Parameters: max_element  The maximum ExploitationEntry in the exploitation registery

RobotFlow::Exploitation::Exploitation (  const Exploitation &  cpy  )

Copy Constructor Parameters: cpy  The Exploitation object to copy

RobotFlow::Exploitation::~Exploitation (   )  [virtual]

Destructor

---

Member Function Documentation

void RobotFlow::Exploitation::add_entry (  int  count, FD::Node *  node, int  output_id )

Constructor with count, node, output_id args. Parameters: count  The iteration count of the entry node  The node (behavior) where the exploitation occurs output_id  The output_id from the exploited node (behavior)

void RobotFlow::Exploitation::clearNilFlag (   )

std::list<ExploitationEntry>& RobotFlow::Exploitation::get_exploitation (   )  [inline]

Returns a reference to the list of ExloitationEntry Return values: list<ExploitationEntry>&  The reference to the list of ExloitationEntry

int RobotFlow::Exploitation::get_max_element (   )  [inline]

Get the maximum number of elements in the ExploitationEntry list Return values: int  The maximum number of elements in the ExploitationEntry list

int RobotFlow::Exploitation::get_size (   )  [inline]

Get the number of ExploitationEntry in the list Return values: int  The number of ExploitationEntry in the list

bool RobotFlow::Exploitation::isNil (   )  const [virtual]

Is the Exploitation object valid ? Return values: bool  the isnil flag Reimplemented from FD::Object.

Exploitation & RobotFlow::Exploitation::operator= (  const Exploitation &  eq  )

= operator Parameters: eq  The Exploitation object to copy Return values: Exploitation&  self reference

virtual void RobotFlow::Exploitation::printOn (  std::ostream &  out = std::cout  )  const [virtual]

Printing object to an output stream in the Overflow format. Parameters: out  The output stream to write to. Implements FD::Object.

void RobotFlow::Exploitation::set_max_element (  int  max_element  )

Sets the maximum number ExploitationEntry in the registery Parameters: max_element  The maximum number of ExploitationEntry in the registery

---

Field Documentation

std::list<ExploitationEntry> RobotFlow::Exploitation::m_exploitation [private]

bool RobotFlow::Exploitation::m_isNilFlag [private]

int RobotFlow::Exploitation::m_max_element [private]

---

The documentation for this class was generated from the following files:

• Behaviors/include/Exploitation.h
• Behaviors/src/Exploitation.cc

---
